Precision CNC Machining

Large-Format, High-Precision CNC Machining

IMT Precision operates one of the largest CNC machining fleets on the West Coast, with bridge-style vertical machining centers offering up to 201" x 134" x 42" of travel. Our floor includes vertical and horizontal CNC mills, CNC lathes, and 5-axis machining centers from Viper, HAAS, Mori Seiki, Toshiba, Hartford, AWEA, and Mazak.

We machine aluminum (6061, 7075), stainless steel (304, 316L), carbon steel, titanium, Inconel, copper, PEEK, Nylon, G10/FR4, Ultem, and castings. Every part is inspected in our climate-controlled metrology room using coordinate measuring machines to verify critical dimensions.

What Sets Us Apart

Few West Coast shops can match our combination of envelope size, tolerance capability, and material range. We hold tight tolerances across large, complex geometries — not just on small bench parts. Whether the job is a one-off prototype or a production run, our ISO 9001:2015-certified processes ensure repeatable quality with full documentation.

Equipment

Vertical CNC Mills

• Viper PRW-5340 — 201" x 134" x 42" travel, 6,000 RPM, 10-ton crane
• Viper B5000GDW — 200" x 103" x 42" travel, 6,000 RPM, 3-ton crane
• AWEA LP 4021 — 160" x 83" x 30" travel, 4,000 RPM, 7.5-ton crane
• Viper B2000PXT — 83" x 77.6" x 28" travel, 4,000 RPM, 175-ton crane
• HAAS VF-9/50 — 84" x 40" x 30" travel, 7,500 RPM, 4-axis
• HAAS VF-6/50 — 64" x 32" x 30" travel, 7,500 RPM, 5-axis
• HAAS VF-6 — 64" x 32" x 30" travel, 8,100 RPM, 4-axis
• HAAS VF-5/50TR — 50" x 26" x 25" travel, 7,500 RPM, 5-axis
• Mori Seiki DuraVertical 5100 — 41.3" x 20.9" x 20.1" travel, 10,000 RPM
• Mori Seiki NV5000B/50 — 40.2" x 20.1" x 20.1" travel, 10,000 RPM
• (2x) HAAS VF-2 Super Speed — 30" x 16" x 20" travel, 12,000 RPM, 4-axis
• (2x) Mori Seiki MV-40E — 22" x 16" x 18" travel, 8,000 RPM, 4-axis

Horizontal CNC Mills

• Toshiba BP-130.P40 — 160" x 94" x 48" travel, 8,000 RPM, 3-ton crane
• Hartford PBM-135B — 100" x 75" x 60" travel, 2,500 RPM, 7.5-ton crane
• HAAS EC-1600-4X — 64" x 40" x 32" travel, 6,000 RPM
• (2x) HAAS EC-500 — 32" x 20" x 28" travel

CNC Lathes

• Mazak QT 350L — 26.77" swing x 60.59" length, 2,500 RPM
• Mazak QTN 300-II — 26.77" swing x 26.15" length, 4,000 RPM
• Mazak SQT 18 — 20.9" swing x 19.96" length, 4,000 RPM
• Nakamura TMC 20 — 17.71" swing x 13.78" length, 4,500 RPM

4th & 5th Axis Equipment

• HAAS TR-210 Trunnion (5-axis)
• HAAS TR-160 Trunnion (5-axis)
• HAAS HRT-450 Rotary (4-axis)
• HAAS HRT-310 Rotary (4-axis)
• HAAS HRT-210 Rotary (4-axis)
• HAAS HA-5C Rotary (4-axis)

Supporting Equipment

• 3 manual mills, 3 manual lathes, automatic HEM saw, 4 floor drill presses, Sunnem honing machine, vertical band saw, surface grinder

Frequently Asked Questions

What is large envelope CNC machining?

Large envelope CNC machining is the milling, boring, and turning of oversized metal components that exceed the work envelope of a standard machine shop — typically parts larger than 80" in any axis or heavier than 1 ton. At IMT Precision, our largest CNC envelope is 201" x 134" x 42" of travel with 10-ton overhead crane support, making us one of the few West Coast shops equipped for parts up to 16 feet long.

What is the largest part you can machine?

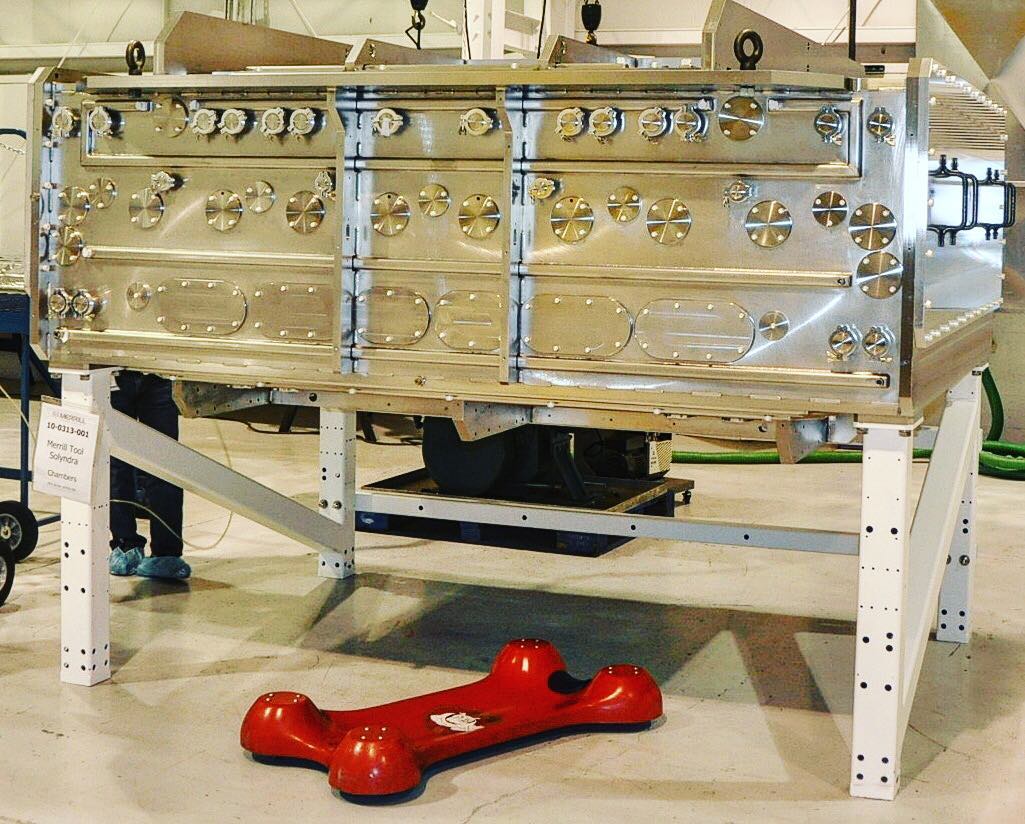

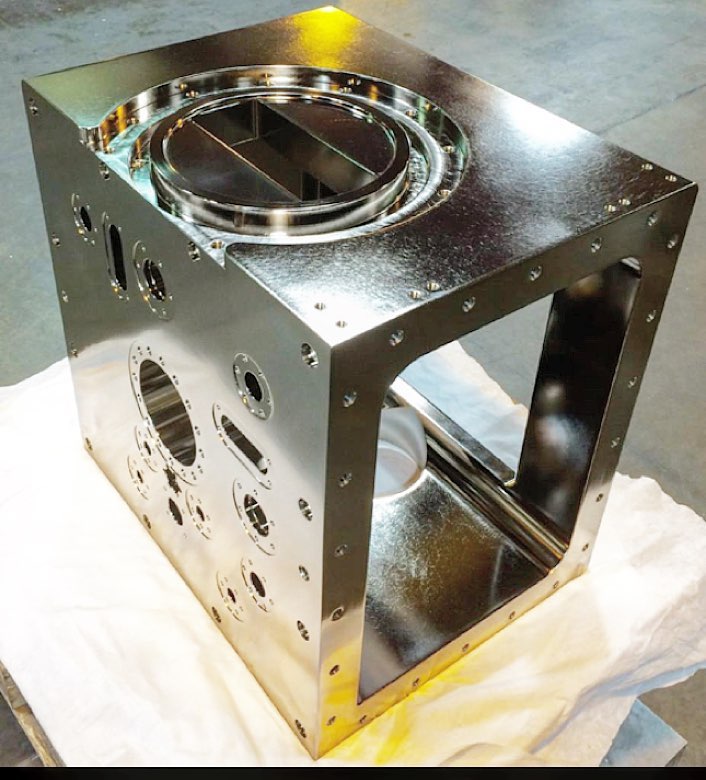

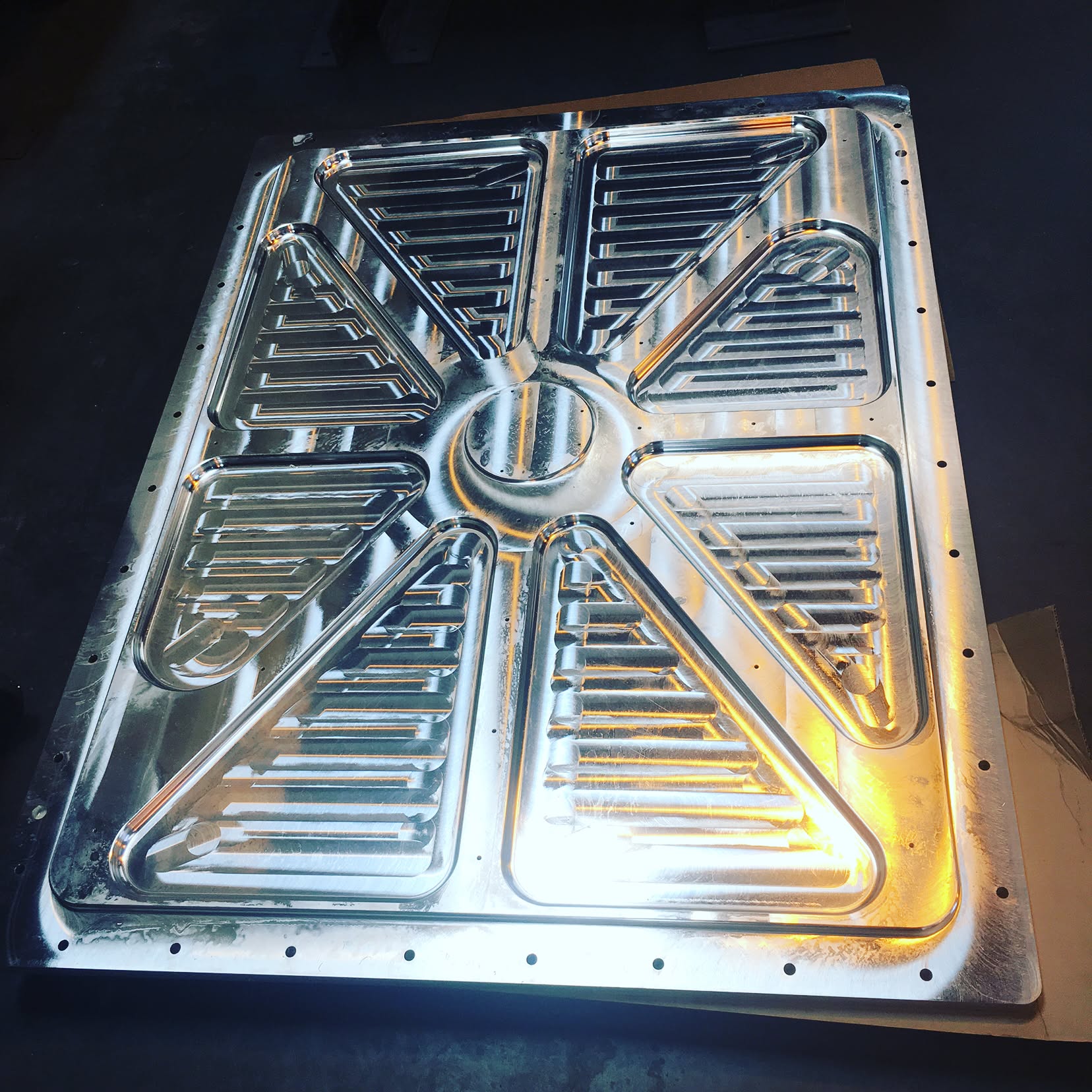

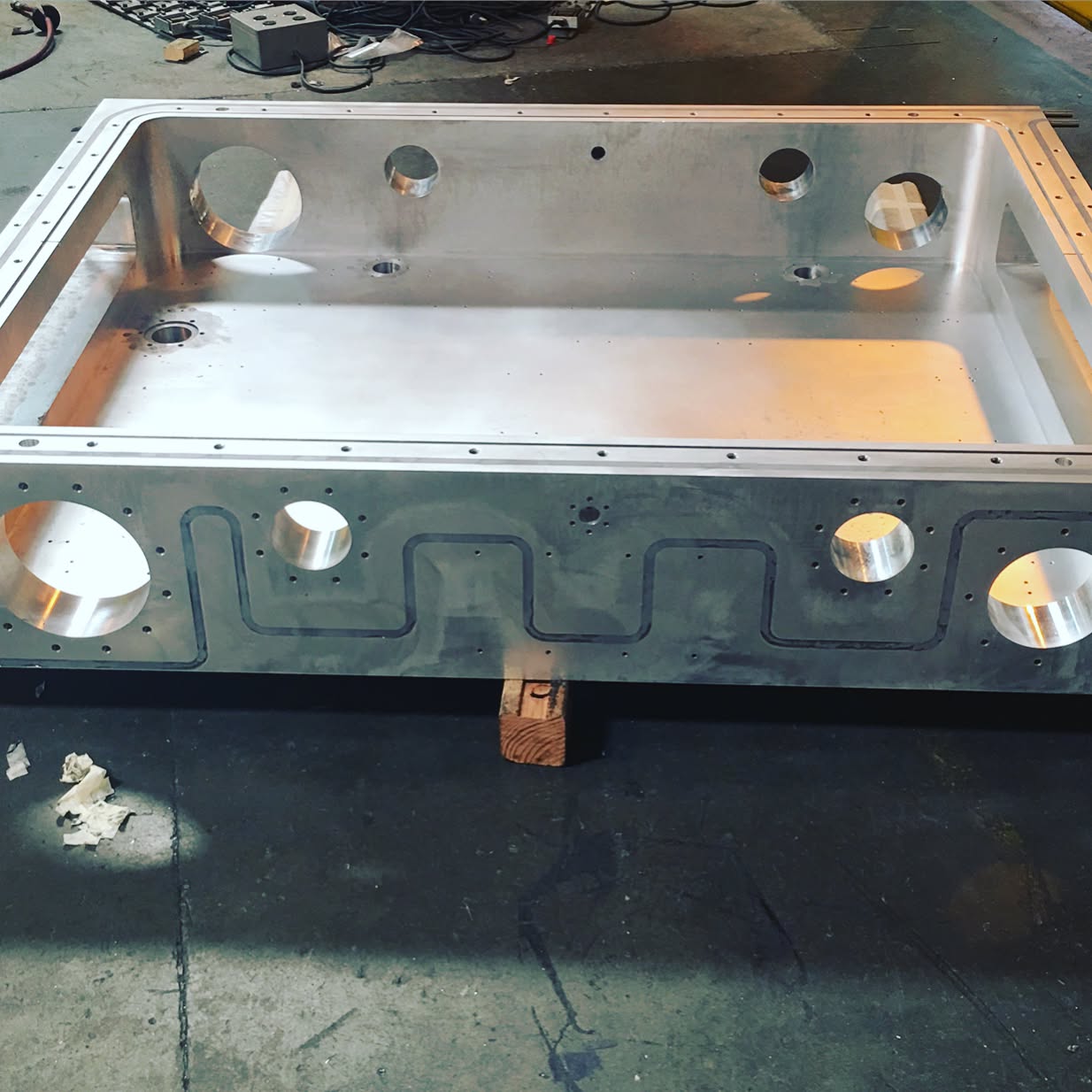

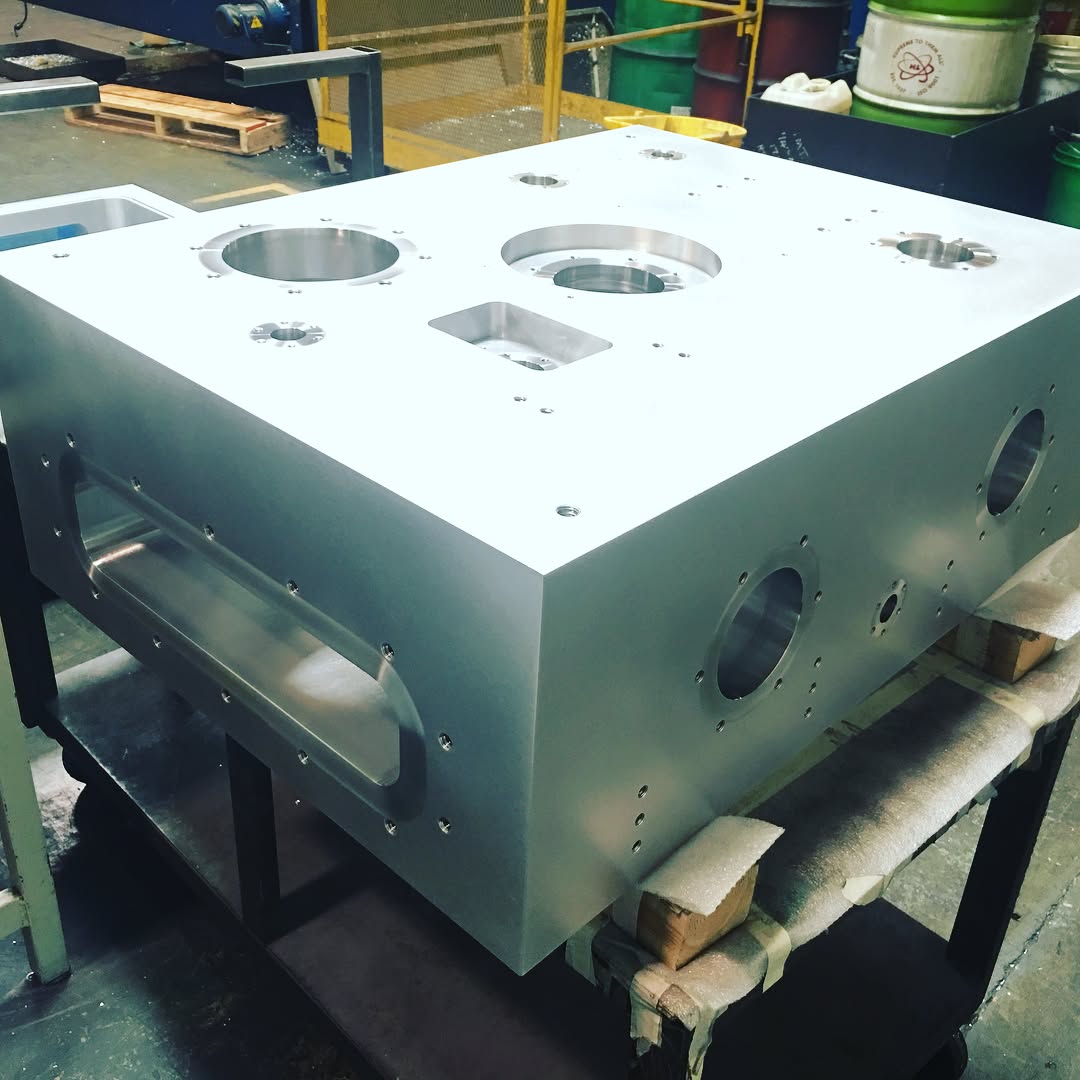

We can machine parts up to 201" x 134" x 42" (roughly 16.75 ft x 11.2 ft x 3.5 ft) and up to 10 tons in weight on our Viper PRW-5340 bridge mill. For horizontal boring work we offer 160" x 94" x 48" of travel on our Toshiba BP-130.P40. This capacity supports satellite bus panels, launch vehicle structures, and large vacuum chamber bodies that won't fit in conventional shops.

What machines do you use for large envelope work?

Our large-envelope cell includes four bridge vertical machining centers (Viper PRW-5340, Viper B5000GDW, AWEA LP 4021, Viper B2000PXT), two horizontal boring mills (Toshiba BP-130.P40, Hartford PBM-135B), and a HAAS EC-1600 horizontal machining center. Crane capacities range from 1.5 to 10 tons so we can load, fixture, and inspect heavy components without subcontracting rigging.

Can you 5-axis machine large parts?

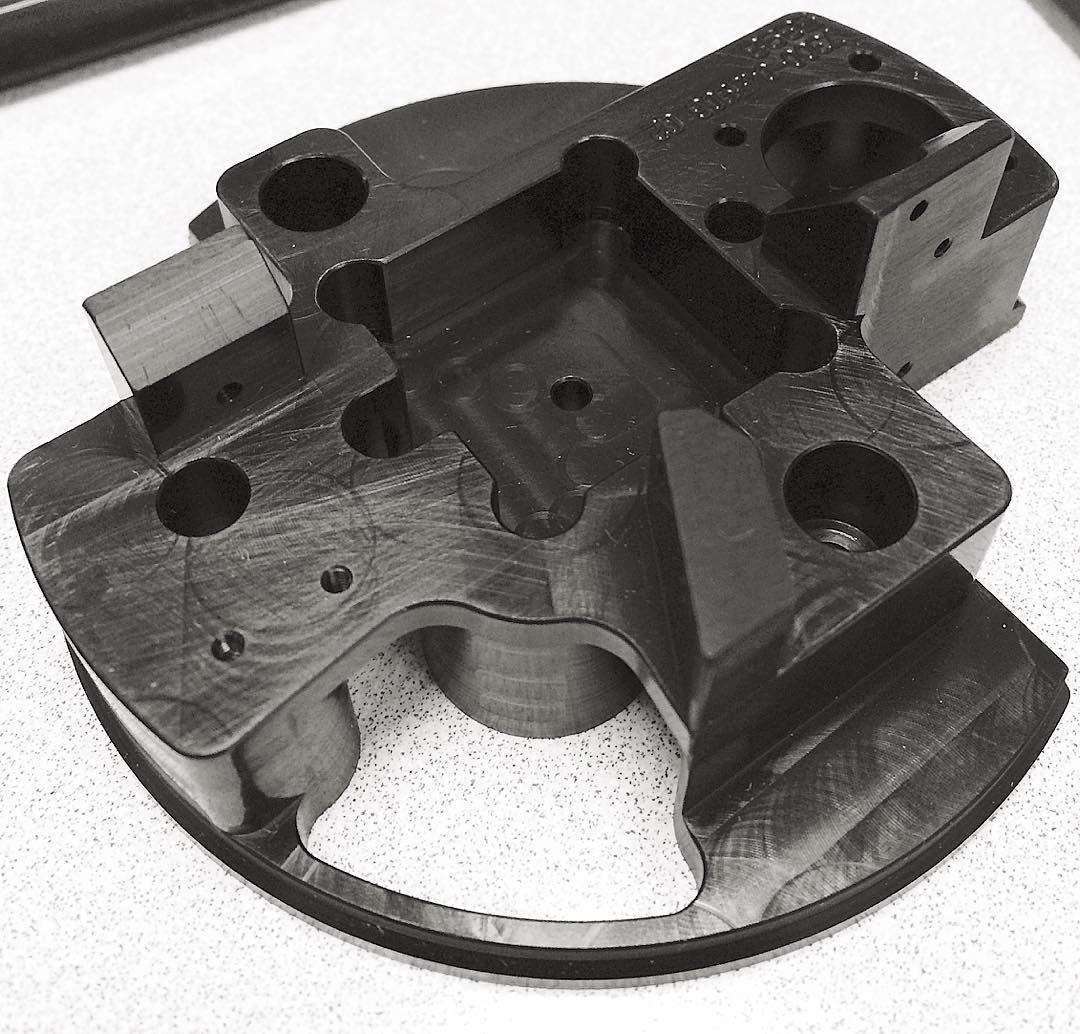

Yes — we run multi-axis CNC milling alongside our large bridge mills, including HAAS VF-6/50 and VF-5/50TR 5-axis centers for complex port geometries, lids, and brackets. For very large structural parts, we combine 5-axis features with our large-envelope bridge mills to keep critical geometry on a single setup whenever possible.

What materials do you machine?

We machine aluminum (including 6061 and 7075), 304/316L stainless steel, carbon and tool steels, titanium, Inconel, copper, and engineered plastics such as PEEK, Ultem, Nylon, and G10/FR4. We have particular depth in aluminum and stainless for vacuum, aerospace, and semiconductor applications.
